導熱雙面膠帶 Thermal Tape

導熱雙面膠帶 Thermla Conductive Glass Fabric Double Coated Adhesive Tape

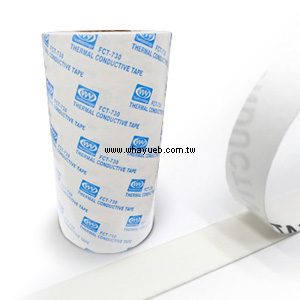

FCT-730A導熱雙面膠帶

玻纖布基材系列

FCT-730A系列導熱膠帶，是成功有效發揮低熱阻、高導熱效能的熱介面材料，具備雙面膠帶之高黏著強度、高耐溫並且低熱阻的功能性產品。FCT-730A系列產品，為各大面板集團所大量使用。

  • 低熱阻
  • 良好導熱效果
  • 高自黏性
  • 操作便利
  • 電氣絕緣
P/N Unit FCT-730A-15 FCT-730A-25
Adhesive Type - FCT-730A FCT-730A
Carrier Type - Glass Fabric Glass Fabric
Release Liner - 120g W/PEK with FCT-730 logo printed 120g W/PEK with FCT-730 logo printed
Roll Length Standard M 50 50
Roll Width mm 1240 1240
Total Thickness mm 0.15 0.25
Total Thickness Tolerance % ±10 ±10
Density g/cm³ 2.2 2.2
180° Peel Adhesion (PSTC-101) N (Kgf) >15.72 (>1.6) >17.66 (>1.8)
Temperature Tolerance
(Short Term)		 ˚C (˚F) 180 (356) 180 (356)
Holding Power 25˚C hr >48 >48
(PSTC-7) (1kg/inch) 60˚C hr >48 >48
Initial Tack (J.Dow Method) No. >17 >20
Insulation Strength
(ASTM D 149)		 kV >1.5 >4
Thermal Impedance
(ASTM D 5470)		 ˚C･in2/W 0.41 0.59
Thermal Conductivity
(ASTM D 5470)		 W/m･K 1.2 1.2
Glass Transition Temperature ˚C -28 -28
Temperature Range of Usage ˚C -20~+120 -20~+120
Hazardous
Substance Free		 RoHS Compliance O  O
Halogens free Compliance O  O
REACH Compliance O  O
