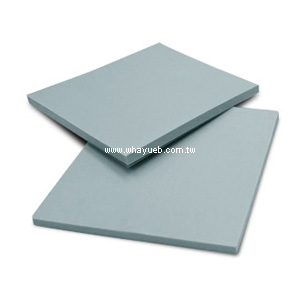

導熱矽膠 Thermal Pad
| Category | Item | Unit | SR-1000AS | SR-1000AN | SR-1000AH | Test Method |
|---|---|---|---|---|---|---|
| Physical-Related | Matrix Polymer | - | Silicone | Silicone | Silicone | - |
| Color | - | Sky blue | Grey | Grey | Visual | |
| Thickness Range | mm | 0.5~5.0 | 0.3~5.0 | 0.3~3.0 | ASTM D374 | |
| Density | g/cm³ | 2.7 | 2.9 | 3.1 | ASTM D792 | |
| Hardness | Shore OO | 36 | 53 | 80 | ASTM D2240 | |
| Tensile Strength | psi | 30 | 25 | 35 | ASTM D412 | |
| Elongation | % | 370 | 170 | 140 | ASTM D412 | |
| Weight Loss | % | <1 | <1 | <1 | 120°C /24hrs | |
| Electrical-Related | Insulation Strength | kV/mm | 7 | 8 | 10 | ASTMD149 |
| Surface Resistance | Ω | >1015 | >1014 | >1015 | ASTM D257 | |
| Volume Resistivity | Ω.cm | >1014 | >1014 | >1014 | ASTM D257 | |
| Thermal-Related | Thermal Conductivity | W/m.K | 2.3 | 2.8 | 3.5 | ISO/DIS 22007-2.2 |
| Temperature Range | °C | -40~200 | -40~200 | -40~200 | - | |
| Other | Adhesive Available | O | O | O | - | |
| Certification | UL File No. | E227890 | O | O | O | 94 V-0 |
| Hazardous Substance Free |
RoHS | Compliance | O | O | O | SGS/CTI |
| Halogens free | Compliance | O | O | O | SGS/CTI | |
| REACH | Compliance | O | O | O | SGS/CTI |
